GR-COTTON INFRARED REMOTE CONTROL RECEPTION

Pocket

GR-COTTONでリモコンの受信を行いました。
http://gadget.renesas.com/ja/product/cotton.html
GR-COTTONは、GR-ADZUKI の兄弟モジュールです。
GR-COTTON
http://akizukidenshi.com/catalog/g/gK-09867/

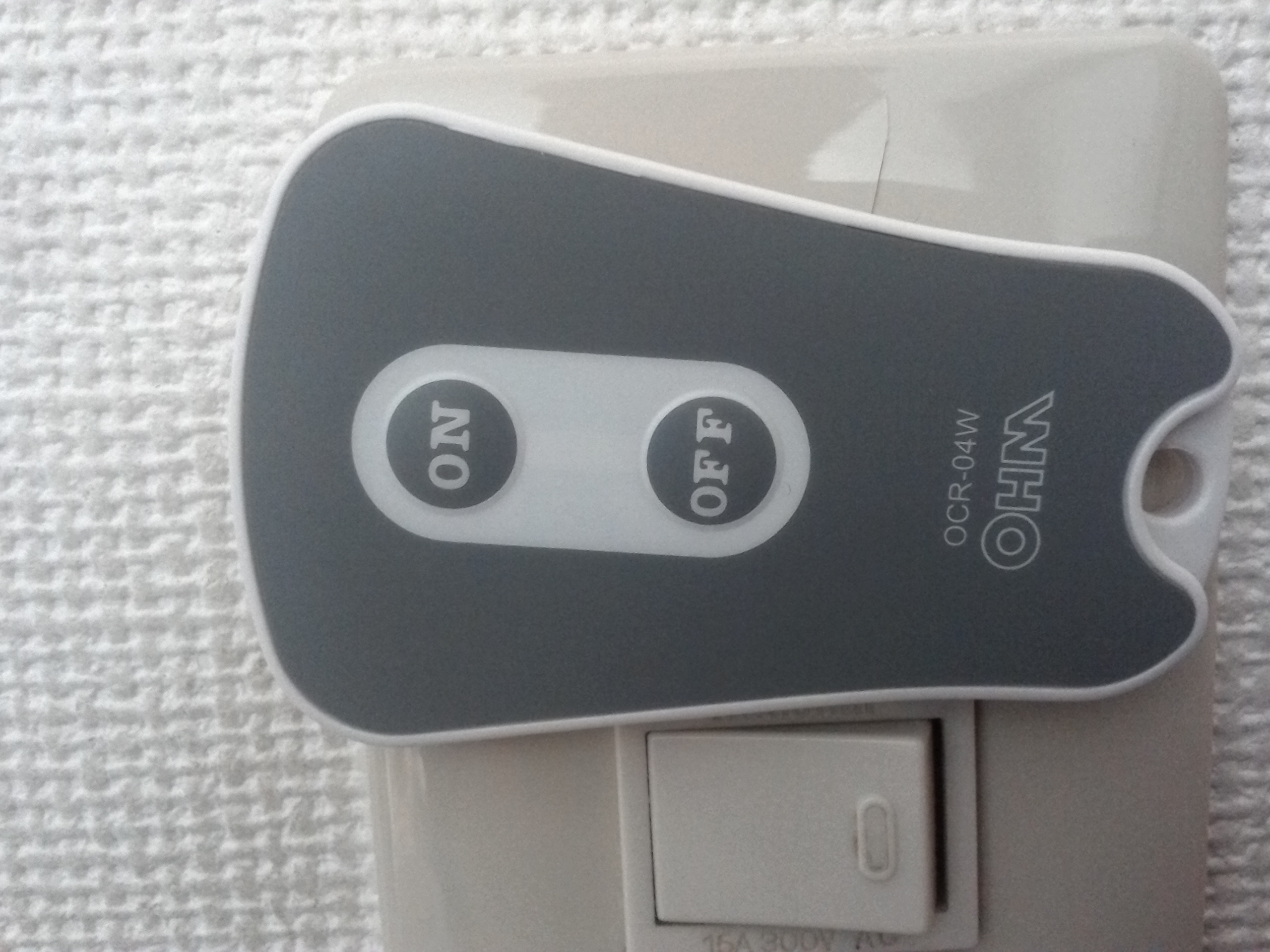

リモコンは、電灯のON/OFFを使用します。
天井照明器具専用 リモコンスイッチ [品番]07-8250 OCR-04W
https://www.amazon.co.jp/%E5%A4%A9%E4%BA%95%E7%85%A7%E6%98%8E%E5%99%A8%E5%85%B7%E5%B0%82%E7%94%A8-%E3%83%AA%E3%83%A2%E3%82%B3%E3%83%B3%E3%82%B9%E3%82%A4%E3%83%83%E3%83%81-%E5%93%81%E7%95%AA-07-8250-OCR-04W/dp/B01ABMGF1Y/ref=sr_1_sc_1?s=electronics&ie=UTF8&qid=1518391236&sr=1-1-spell&keywords=%E3%83%AA%E3%83%B3%E3%82%B3%E3%83%B3%E3%80%80%E9%9B%BB%E7%81%AF
天井照明器具専用 リモコンスイッチ [品番]07-8250
http://www.ohm-electric.co.jp/product/c02/c0201/19580/

以下のコードを参考にさせてもらいました。ありがとうございます。
https://www.erestage.com/arduino/remo_recv/

入力ポートを3番ピン変更した以外、コードはそのまま使用しました。

受信モジュールは以下を使用しました。

赤外線リモコン受信モジュール GP1UXC41QS
http://akizukidenshi.com/catalog/g/gI-06487/
ON/OFFのデータがそれぞれ取得できました。

ON
4038079,262,257,91,79,88,79,89,79,89,183,88,183,89,182,89,180,91,79,89,5385,262,260,88,77,91,79,89,79,88,182,89,183,88,183,88,182,89,79,89,
2017997,262,260,88,79,88,79,89,79,89,183,88,183,89,183,89,183,88,79,89,5386,262,260,88,79,88,79,89,79,89,183,88,183,88,182,89,182,89,79,89,
2017997,262,260,88,79,88,79,89,79,89,183,88,183,89,183,89,183,88,79,89,5386,262,260,88,79,88,79,89,79,89,183,88,183,88,182,89,182,89,79,89,
1188009,262,261,86,82,88,77,90,79,88,183,88,181,90,183,88,181,90,79,88,5389,259,263,88,80,88,79,86,82,86,185,86,186,88,183,88,183,88,79,88,

OFF
1231448,273,252,98,70,96,72,96,175,96,72,96,175,96,172,99,72,96,175,97,5378,270,252,96,72,96,71,97,175,96,72,96,175,96,175,96,71,96,175,96,
1407149,262,260,89,79,91,77,88,182,89,79,88,183,88,183,88,79,88,183,90,5386,262,257,93,77,89,79,90,181,91,77,91,181,90,181,91,77,91,178,93,
1338940,269,255,93,74,93,74,93,178,93,74,93,176,95,178,93,74,93,175,96,5383,266,255,93,74,93,74,93,179,92,75,93,179,92,179,92,75,92,179,93,
1338940,269,255,93,74,93,74,93,178,93,74,93,176,95,178,93,74,93,175,96,5383,266,255,93,74,93,74,93,179,92,75,93,179,92,179,92,75,92,179,93,

次は送信を行いたいと思います。



I received the remote control with GR-COTTON.
http://gadget.renesas.com/ja/product/cotton.html
GR-COTTON is a sibling module of GR-ADZUKI.
GR-COTTON
http://akizukidenshi.com/catalog/g/gK-09867/
The remote control uses ON / OFF of electric light.
Ceiling lighting fixture dedicated remote control switch [product number] 07 – 8250 OCR – 04 W

https://www.amazon.co.jp/%E5%A4%A9%E4%BA%95%E7%85%A7%E6%98%8E%E5%99%A8%E5%85%B7%E5%B0%82%E7%94%A8-%E3%83%AA%E3%83%A2%E3%82%B3%E3%83%B3%E3%82%B9%E3%82%A4%E3%83%83%E3%83%81-%E5%93%81%E7%95%AA-07-8250-OCR-04W/dp/B01ABMGF1Y/ref=sr_1_sc_1?s=electronics&ie=UTF8&qid=1518391236&sr=1-1-spell&keywords=%E3%83%AA%E3%83%B3%E3%82%B3%E3%83%B3%E3%80%80%E9%9B%BB%E7%81%AF
Ceiling lighting fixture dedicated remote control switch [product number] 07 – 8250
http://www.ohm-electric.co.jp/product/c02/c0201/19580/

I referred you to the following code. Thank you very much.
https://www.erestage.com/arduino/remo_recv/
The code was used as it was except that the input port was changed to pin 3.

The receiving module used the following.
Infrared Remote Control Reception Module GP1UXC41QS

http://akizukidenshi.com/catalog/g/gI-06487/
We were able to acquire ON / OFF data respectively.

ON
4038079,262,257,91,79,88,79,89,79,89,183,88,183,89,182,89,180,91,79,89,5385,262,260,88,77,91,79,89,79,88,182,89,183,88,183,88,182,89,79,89,
2017997,262,260,88,79,88,79,89,79,89,183,88,183,89,183,89,183,88,79,89,5386,262,260,88,79,88,79,89,79,89,183,88,183,88,182,89,182,89,79,89,
2017997,262,260,88,79,88,79,89,79,89,183,88,183,89,183,89,183,88,79,89,5386,262,260,88,79,88,79,89,79,89,183,88,183,88,182,89,182,89,79,89,
1188009,262,261,86,82,88,77,90,79,88,183,88,181,90,183,88,181,90,79,88,5389,259,263,88,80,88,79,86,82,86,185,86,186,88,183,88,183,88,79,88,

OFF
1231448,273,252,98,70,96,72,96,175,96,72,96,175,96,172,99,72,96,175,97,5378,270,252,96,72,96,71,97,175,96,72,96,175,96,175,96,71,96,175,96,
1407149,262,260,89,79,91,77,88,182,89,79,88,183,88,183,88,79,88,183,90,5386,262,257,93,77,89,79,90,181,91,77,91,181,90,181,91,77,91,178,93,
1338940,269,255,93,74,93,74,93,178,93,74,93,176,95,178,93,74,93,175,96,5383,266,255,93,74,93,74,93,179,92,75,93,179,92,179,92,75,92,179,93,
1338940,269,255,93,74,93,74,93,178,93,74,93,176,95,178,93,74,93,175,96,5383,266,255,93,74,93,74,93,179,92,75,93,179,92,179,92,75,92,179,93,

Next I would like to send.
