GR-ADZUKI SAMPLE

Pocket

USBケーブルの接続までできたので次にサンプルプログラムの読み込みと実行を行います。
IDE for GRを起動し、メニュー[ファイル] -> [スケッチの例] -> [03.Analog]から”Fading”を選択します。

サンプルスケッチが記載された画面がもう一画面表示されます。

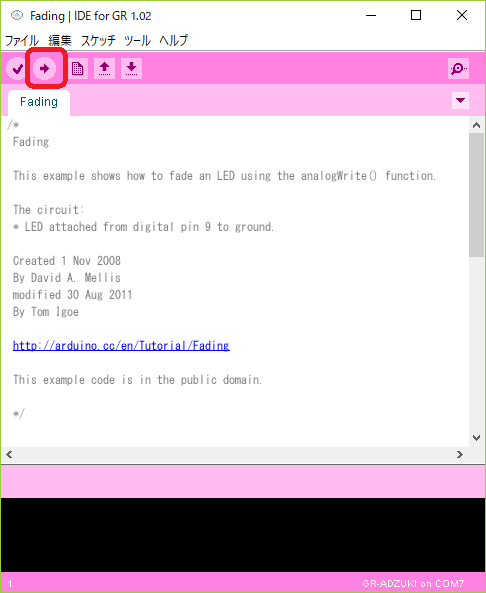

次にコンパイルと書き込みを行います。ツールバーの矢印ボタンを押すか

または、メニュー[ファイル] -> [マイ コンボードに書き込む] を選択して下さい。

スケッチのコンパイルが行われ、続いてマイコンボードへの書き込みが行われます。
コンパイルと書き込みの進捗がコードの下側の部分にメッセージが表示されます。
Reset MCU
と表示されれば成功です。

LED2がゆっくり点滅しだします。

Now that I can connect the USB cable, I will read and execute the sample program next.
Launch the IDE for GR and select “Fading” from the menu [File] -> [Sketch Example] -> [03.Analog].

The screen with the sample sketch is displayed one more screen.
Then compile and write.
Please press the arrow button on the tool bar or select the menu [File] -> [Write to My Computer].
The sketch is compiled and then written to the microcontroller board.
A message is displayed in the lower part of the code as the compilation and writing progresses.
It will be successful if it is displayed as Reset MCU.
LED2 flashes slowly.

現在我可以連接USB電纜,接下來我將讀取並執行示例程序。
啟動GR for IDE並從菜單[File] – > [Sketch Example] – > [03.Analog]中選擇“Fading”。

帶有示例草圖的屏幕再顯示一個屏幕。
然後編譯並寫入。
請按工具欄上的箭頭按鈕或選擇菜單[文件] – > [寫入我的電腦]。

草圖被編譯後寫入微控制器板。
編譯和寫入過程中將在代碼的下半部分顯示一條消息。
顯示為Reset MCU將會成功。
LED2緩慢閃爍。
